Circular Saws


Diamond circular saw blades for cutting marble, limestone and travertine

Normal (N) and low noise (LN) steel cores
are available.

In some cases a base layer (S)
can be added for perfect brazing.

Segments with thickness 5 mm or more
are sandwich type.

The standard hole diameters (H)
are 25.4, 50.0, 60.0 and 80.0 millimeters.

Reducing bushes can be supplied on request.

Because of special designed soft metal bond and the high diamond concentration our circular saws
assure fine cutting edge.

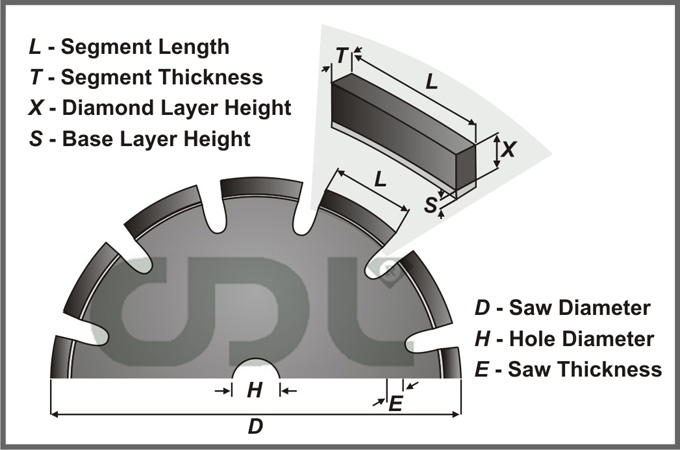

1. Small diamond circular saw blades

D

Segment dimensions (mm)

Number of

E

Type

(mm)

L

T

X

S

segments

(mm)

250

40

2.4

7

-

17

1.6

N

250

40

3.0

7

-

17

2.0

LN

300

40

2.8

7

-

21

1.8

N, LN

350

40

3.2

7

-

25

2.2

N, LN

400

40

3.6

7

-

28

2.5

N, LN

450

40

4.0

7

-

32/26

2.8

N, LN

500

40

4.0

7

-

36/30

2.8

N, LN

600*

40

5.0

7

-

42/36

3.5

N, LN

650*

40

5.5

7

-

38

4.0

N

700*

40

5.5

7

-

40

4.0

N, LN

800*

40

6.0

7

-

46

4.5

N, LN

* Marked segments are three-layer sandwich type


2. Big diamond circular saw blades

D

Segment dimensions (mm)

Number of

E

H

Type

(mm)

L

T

X

S

segments

(mm)

(mm)

900

24

8.0

9

-

64

5.0

80/100

N, LN

1000

24

8.0

9

-

70

5.0

80/100

N, LN

1200

24

8.5

9

-

80

5.5

80/100

N, LN

1250

24

9.0

9

-

82

6.0

80/100

N

1300

24

9.0

9

-

88

6.0

100

N

1600

24

10.5

10

-

104

7.5

100

N

1700

24

10.5

10

-

108

7.5

100/120

N

1800

24

11.0

10

-

120

8.0

150

N

2000

24

11.0

10

-

132

8.0

150

N

2500

24

12.5

10

-

140

9.0

150

N

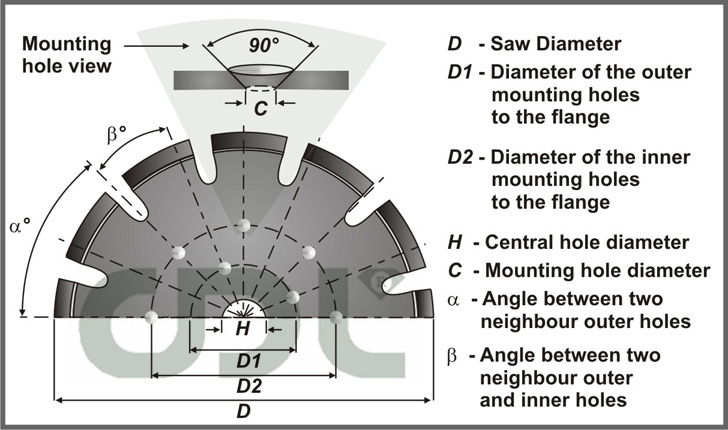

3. Horizontal circular saw blades




Please specify mounting holes to the flange:

H, D, D1, D2, C, angles α and β

and number of holes on every circuit.

D

Segment dimensions (mm)

Number of

E

H

Type

(mm)

L

T

X

S

segments

(mm)

(mm)

400

40

6

5

2

24/28

3.5/4.0

50/60

N, LN

450

40

6

5

2

26/32

3.5/4.0

50/60

N, LN

500

40

6

5

2

30/36

3.5/4.0

50/60

N, LN

600

40

6

5

2

36

4.0

60/80

N, LN

Segments with different dimensions can be supplied according to a special order of the customer.

To choose a segment type, please see chapter Diamond segments.
